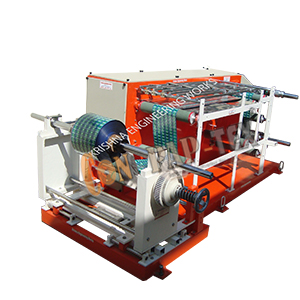

Heavy Duty Doctoring Rewinding Machine
It is genuinely designed and built for the heavy-duty process of doctoring rewinding. Built with customized drive suitable to user’s applications for all types of Laminates like Foil, Paper, LDPE, HDPE, PVC. 100% correction Our Heavy Duty Doctoring Rewinding Machine is used. Heavy duty process is manufactured with us most precision which ensures zero maintenance up to 10 years.
We have been successfully Manufacturing, Exporting & Supplying all types of Heavy Duty Doctoring Rewinding Machine and Winding Rewinding Machine for Inkjet Printer & Batch Printing, Slitter Rewinder Machine since last 25 years from Ahmedabad, Gujarat, India. We are the winner of 3 times National Award and 2 times International Award for Quality manufacturing.
- Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
- Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
- The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
- It is great substitute to online coding / batching operation
- Convenient height for operation
- Compact Design
- Variable speed drive
- Double drive
|
Web width |
100 to 1500 MM |
|
Max. Weight of Unwind |
100 to 1000 KG |
|
Max. Parent Reel Dia. |
400 MM |
|
Max. Rewind Reel Dia. |
400 MM |
|
Rewind Core Dia. |
76 MM |
|
Motor |
2 HP AC / DC Motor (3, 5 HP also available on suitable model) |
|
Maximum Designed Speed |
100 to 150 Mtrs / Min |
